Ozone Air Purification

The station is designed to clean the air from dust, aerosols, organic pollutants, as well as for its deodorization and disinfection. Complete destruction of viruses, bacteria, mold, fungi.
The industrial ozonizer or the industrial air ozonizer is your protection against covid 19.

Capabilities

Ozone has a higher bactericidal effect and oxidative potential than chlorine. It destroys the redox system of bacteria, their cytoplasm, while chlorine affects exclusively the enzymes of the microbial cell. This explains the great virulent effect of ozone, since viruses do not have enzyme systems.


Model

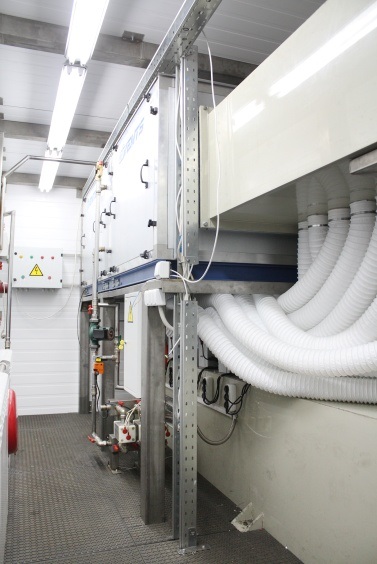

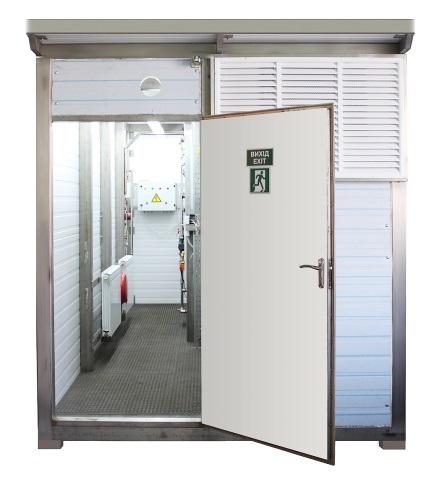

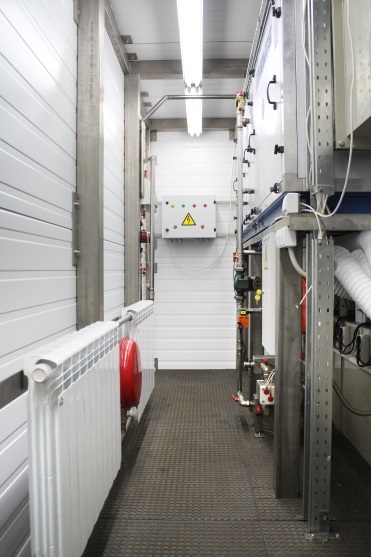

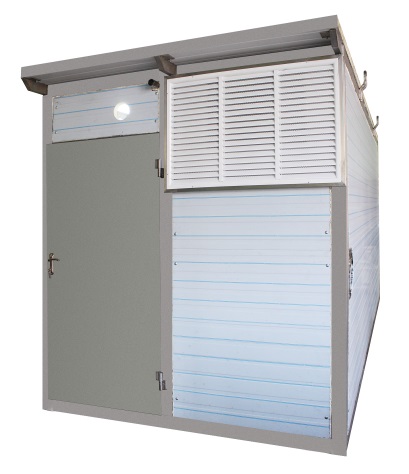

The station is designed in the form of a container, the load-bearing frame of which is welded from stainless steel tubes of square section 100 × 100 × 4 and 80 × 40 × 3 mm. The side surfaces are covered with insulated sandwich panels 50 mm thick, one side of which is made of stainless steel, and the reverse one is painted with white powder coating paint.

Switching openings are located at the butt-ends of the container for the possibility of linear arrangement of modules in the station in order to increase the productivity of the system.


Model
The modular design reduces capital expenditures for equipment installation, simplifies its integration into existing technological lines, provides high efficiency in increasing productivity and convenient maintainability. Ozonation technology can be implemented locally, at separate facilities, which will lead to a decrease in the load on the central wastewater treatment plant.

Station Technical Data


Productivity, m3 / h 5500
Specific power consumption, W / m3 0.91 (in summer) ÷ 9.73 (in winter at t> 20 ° С;)
Mode of operation of the station is continuous, automatic
Consumables (including chemical) are not available
Working range of outside air temperatures +35 ÷ -50 ° С
Installed capacity is no more than 53.5 kVA

Module dimensions:
- height 2700 mm
- width 2400 mm
- length 5400 mm


Fields of use of the stations

1. housing and public utility companies:
- waste water treatment plants;
- motor transport companies;
- electric transport and subway companies;
- large crowd areas;
- funeral home companies, etc.;
2. food factories:
- edible oil refinery plants;
- meat processing plants;
- fish canneries;
- meat and bone meal rendering plants;
- milk processing shops;
- vegetable processing factories;
- canneries, etc. ;
3.agricultural enterprises:
- poultry farms;
- livestock farms;
- stud farms;
- compound feed shops;
- cattle burial sites;
- leather tanneries, etc.;
4. medical institutions:
- morgues;
- infectious diseases departments, etc.;

Investment Attractiveness of the Project

Ozone technology for neutralization of harmful organic emissions and air deodorization is a modern eco- friendly technology and has a number of significant advantages, namely:

1. complete 100% purification of dirty air (Protocols No. 1, 2)
2. no need for consumables;
3. no need for chemical reagents;
4. compactness of location;
5. energy efficiency (specific electricity consumption ‒ 0.91 ÷ 9.73 W / m3);
6. automatic mode of operation (no need for maintenance personnel);
7. the need for only one type of energy ‒ electrical;
8. economy (prime cost of purification 1 m3 of dirty air ‒ 0.05 euro cents)
9. modular design, providing a high level of reliability;
10. environmental safety;
11. high sanitary and hygienic efficiency (complete disinfection of airborne mixture from microbes and viruses)
12. modern design.
